LTH electric tricycle
LTH-02B
Minimum order quantity:
1
Quantity
- Min. Order:1
- EBU Cabriolet tricycle Electric Big Powered 3 Wheel Cargo For Adult
- Specification Description:LTH-02B
| LTH-03 | LTH-02A/02B | LTH-01 | |

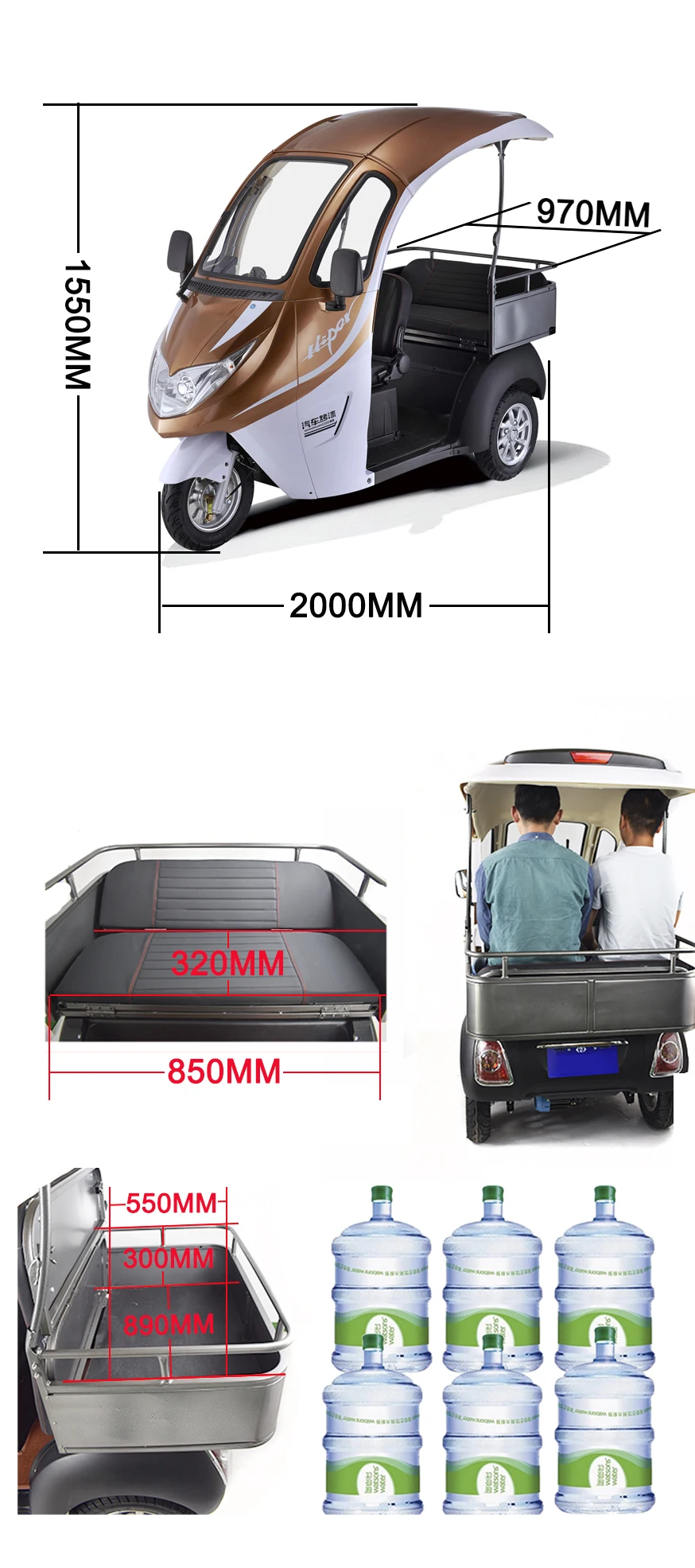

| Dimensions | 2300*1120*1600mm | 2000*970*1550mm | 2300*1120*1600mm |
| Charger type | external | external | external |
| Steering configuration | handle | handle | handle |
| Battery specifications | 60v45ah/60ah | 60v32ahDouble | 60v20ah |
| Wheel base | 1655mm | 1420mm | 1160mm |
| Transmission ratio | 1|9 | 1|13 | 1|13 |
| Ground clearance | 160mm | 110mm | 130mm |
| Motor power | 1000w | 800w | 500w |
| Curb Weight | 230kg | 150kg/180kg | 90kg |
| Motor | permanent magnet DC | permanent magnet DC | permanent magnet DC |
| Braking mode | hydraulic handbrake | Front drum brake,rear disc brake | Front drum brake,rear disc brake |
| Max speed | 45km/h | 45km/h | 45km/h |
| Parking mode | handbrake bolt type | handbrake bolt type | handbrake bolt type |
| Range | ≥70km | ≥60km | ≥50km |
| Front wheel specifications | 135-70-12 | 3.5-10 | 3.5-10 |
| Rear wheel specifications | 135-70-1 | 3.5-10 | 3.5-10 |
| Rated carrying capacity | 3 people | 3 people | 2 people |
FAQ
Question 1: How to place an order?
A: The procedure is like this:
1). Contact customer service to determine the freight and product model, configuration, quantity and other detailed information (you can also arrange freight forwarding by yourself);
2). We provide you with a proforma invoice according to your final decision, which contains all product details;
3). You need to arrange 30% of the payment to our bank account, and then we will prepare the product to start production (the cycle is generally about 10 days, which can be shipped specifically for your order configuration quantity);
4). After the product is completed, the remaining payment is paid, and we arrange forwarder delivery (or we provide relevant information to arrange forwarder transportation by ourselves).
5). After completing this process, the customer service will track the product location and notify you when it is about to arrive and when it arrives, so that you can quickly prepare for customs clearance and other related issues.
6). After getting the items, there will be a dedicated after-sales team waiting for your follow-up feedback.
Q2. What does your FOB reference price include?
A: FOB price only includes cost. If you do not have your own freight forwarder, please provide us with a port near you
Countries/regions, we will quote CIF prices including shipping costs.
