SM-1

Model NO.
SM-1
Quantity:
  • Specification Code:4门今日阳光
  • Specification Description:SM-1

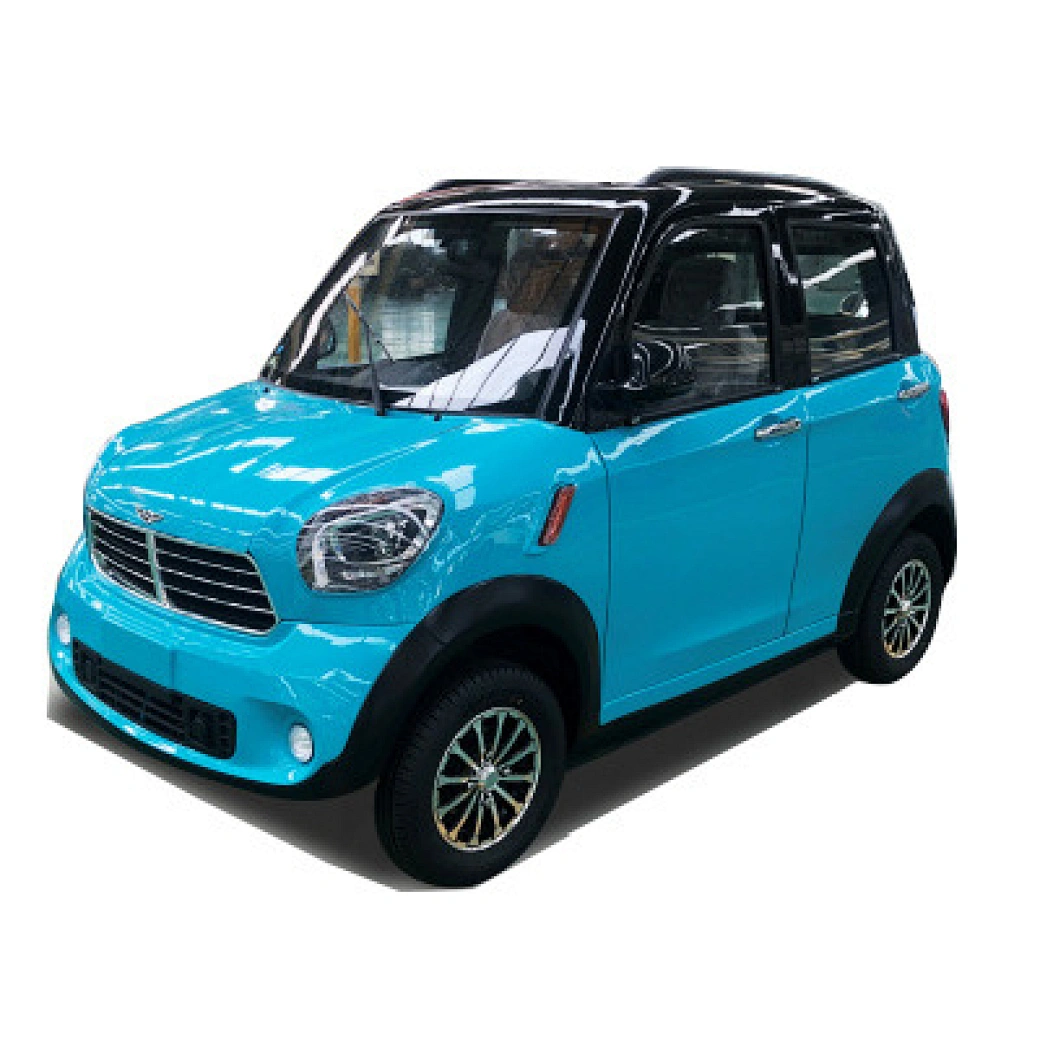

EBU electric car

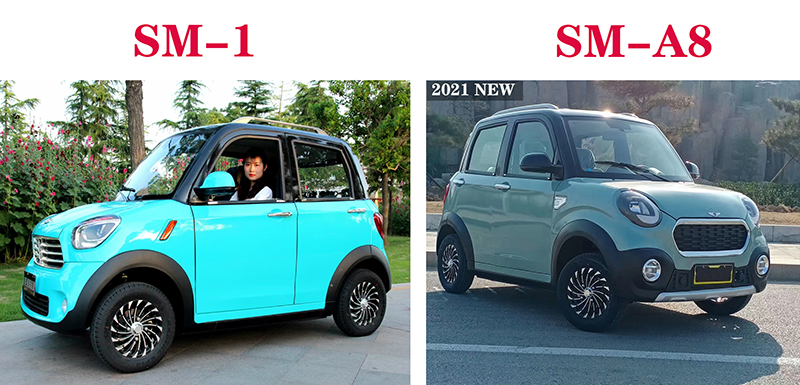

Product nameSM-1SM-A8
Electrial System
Complete vehicle kit purchaseFull Bulk Kit/Semi Bulk Kit

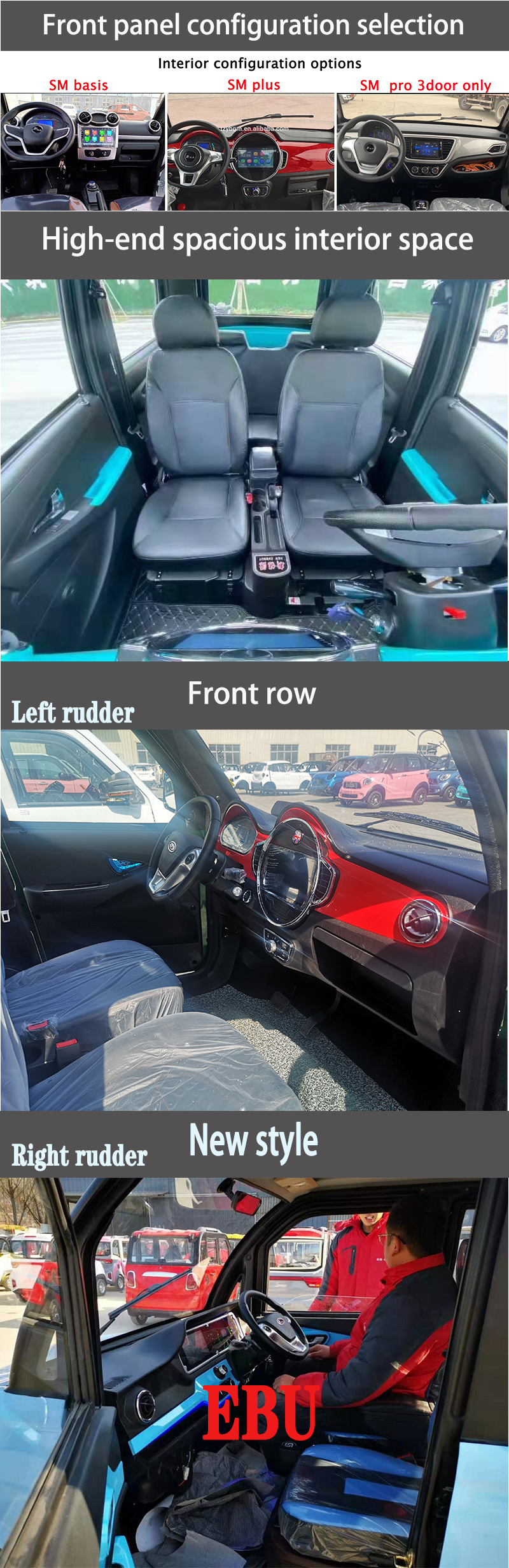

Steering positionLeft steering electric car
Steering and driving customizationRight steering electric car (200 sets (can be divided into batches))
Controller60V / 72v Intelligent Controller
Storage Battery12V*5PCS,100AH
Custom batteryLead acid / lithium battery 80-120ah
Battey chargerVehicle-mounted intelligent charger
Charger VoltageSingle phase,220V
MotorHanpuda 3000 W alternator
Custom motor5000w-7500w
Traveling Range90-120km
Charging Time8-10Hours
GW550 /850 KG
Technicial Data

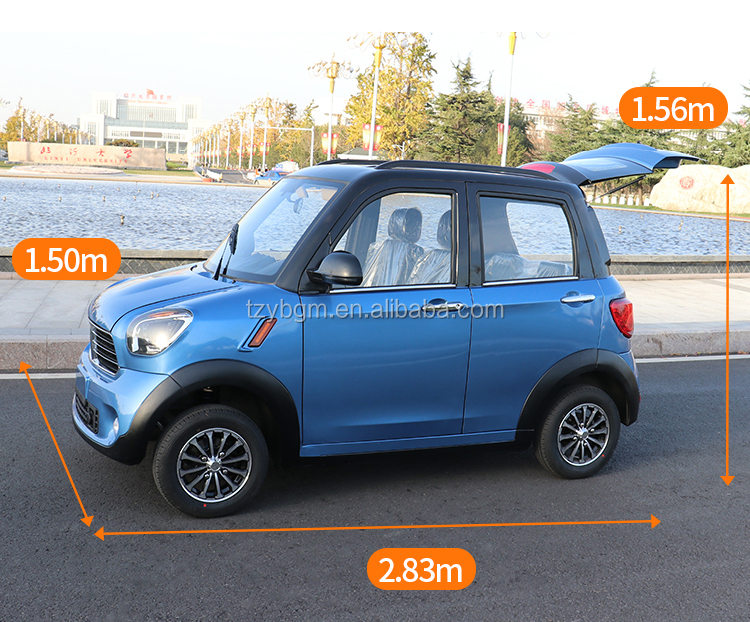

Overall Size2850*1600*1600(L*W*H)3000*1500*1600mm(L*W*H)

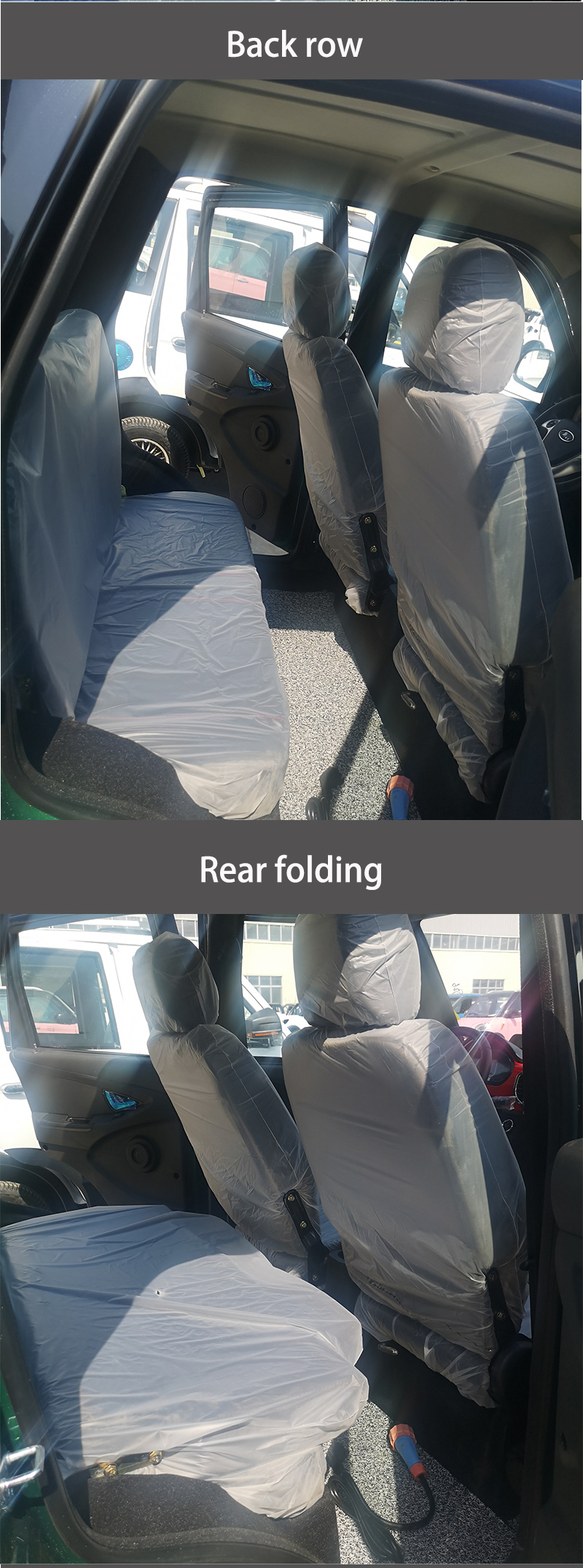

Seating Capacity2-4 Seats4 Seats
Speed Range40-55 km/h
Custom speed55-80km/h
Climbing Capacity30-45%
Wheel Base1550 MM
Body MaterialMetal
Chassis MaterialMetal
Braking Length≤ 4 Meters
Min.Turning Tadius3900 MM
Front Rear Tracks1000 MM
Car Body System

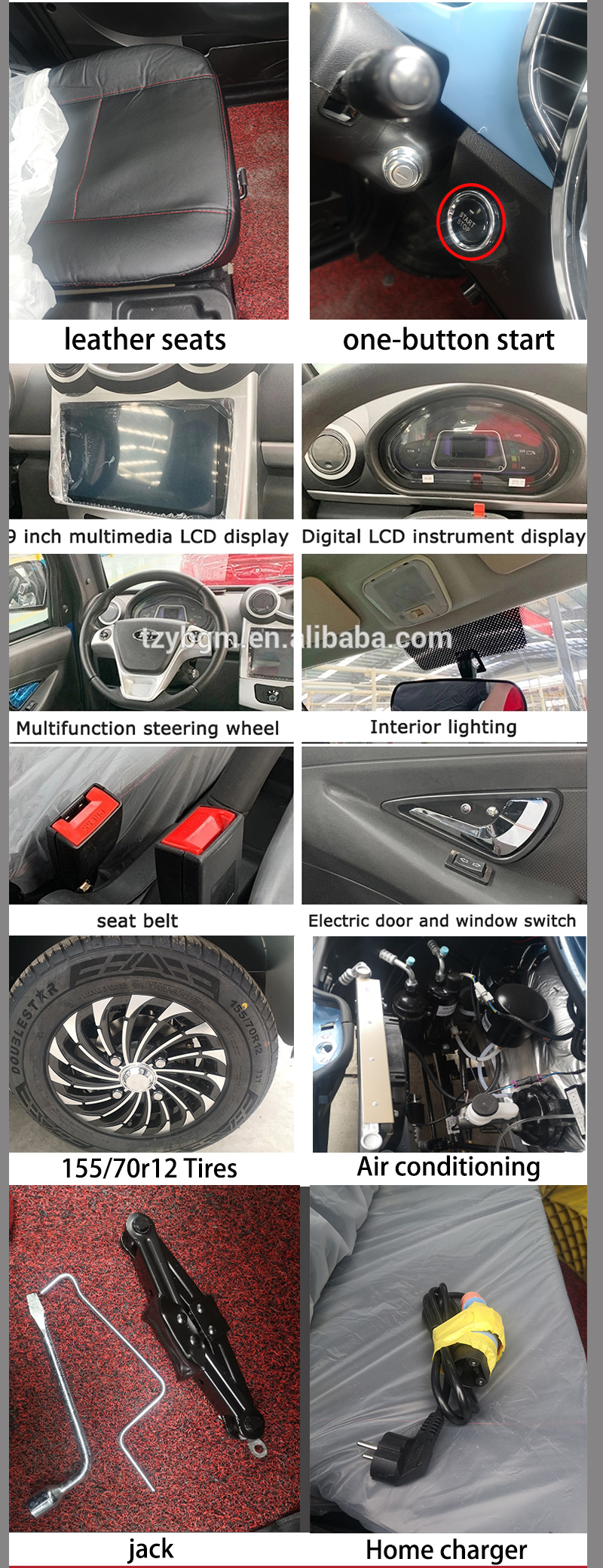

Seat MaterialImitation leather (PU)
Instrument PanelCombined instrument(front/back signal,light,trumpet,dump energy,current speed display)
Lighting SystemCombined type front light and back light,braking light,front/back turning light
Switch SystemLight switch, main power switch, electric horn, wiper switch, central lock, four-door power window
Entertainment SystemDigital LCD panel, MP3/MP5 Player,USB Port,Backup Camera
Car Body PaintingColor can be customized.
seat belt
Chassis System
Drive SystemRear-drive motor,Controller adjusted automatically
Steering SystemAutomatic adjustment rack and pinion direction
Braking SystemFour wheel hydraulic brake + double circuit hydraulic brake + parking brake device + brake assist
Tire Details155-70, Aluminium wheel hub, Vacuum tire
Front Axle and SuspensionIntegral front bridge suspension
Back Axle and SuspensionIntegral front bridge suspension
seat beltOptional
air conditioningOptional

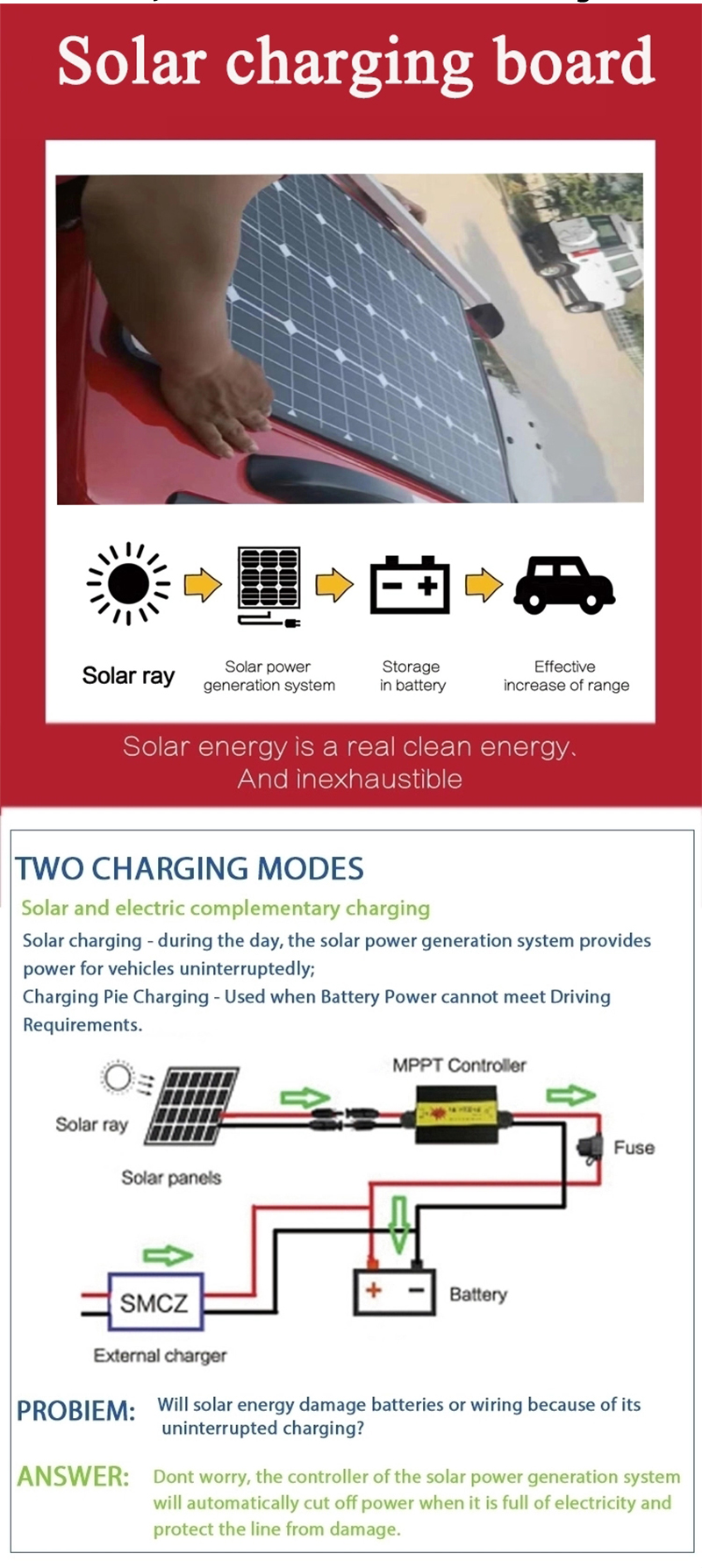

Solar energyOptional
Range extenderOptional
20GP container2 units40GP4-5 units
