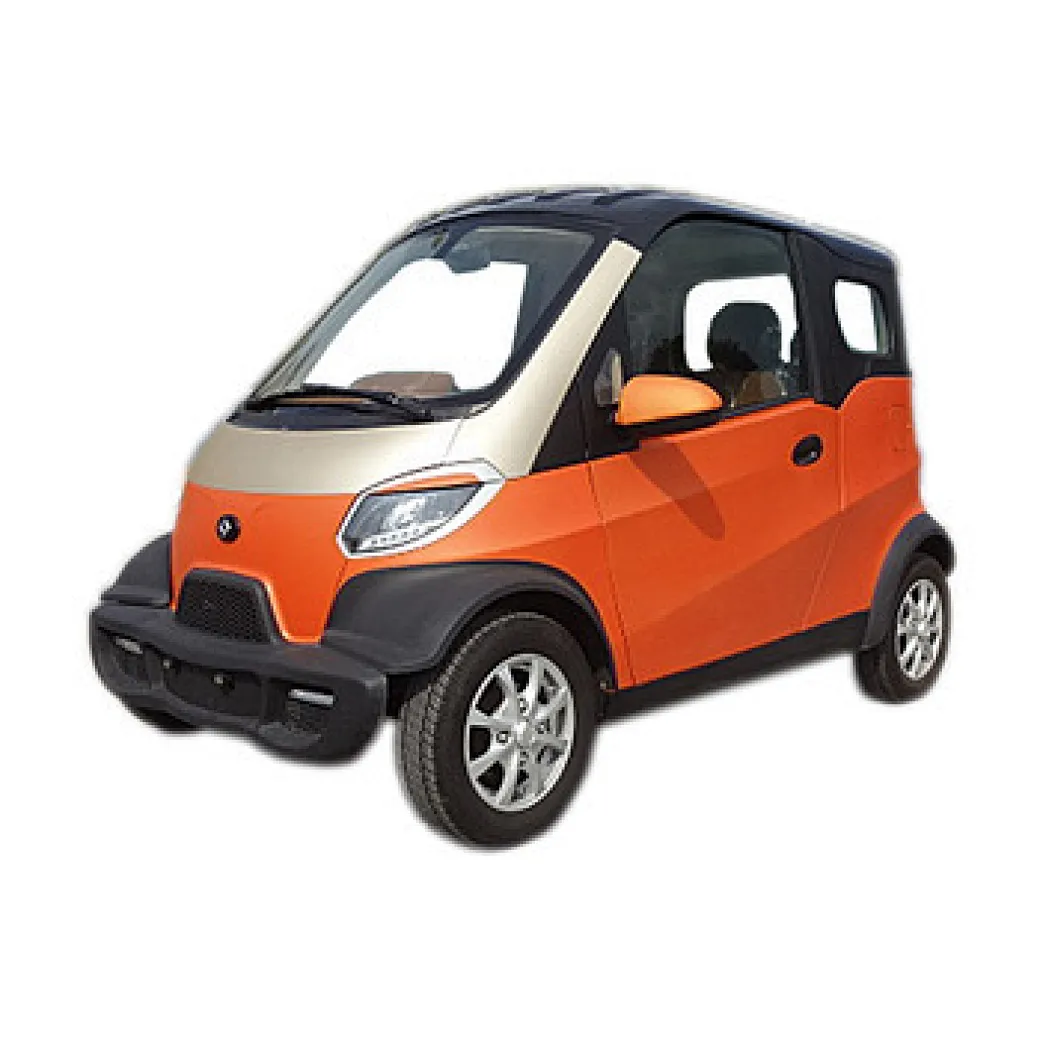

LZD-MH3
LZD-MH3
Delivery:
fob
Minimum order quantity:
1
Country of Origin:
zhejiang
Stock Time:
15Day
Quantity
- Min. Order:1
- Specification Code:灵芝达电动汽车
- Specification Description:MH3
| ROJECT | TECHNICAL PARAMETERS | PROJECT | TECHNICAL PARAMETERS |
| Vehicle model | LZD-M3-4 | Motor power (kw) | 4 |
| Appearance size (length × width × height) (mm) | 2700x1450x1570 | Nominal voltage | 60V |
| Wheelbase (mm) | 1900 | Motor type | DC brushless |
| Front/rear wheelbase (mm) | 1250 | Rated speed (r/min) | 2500 |
| Minimum ground clearance (mm) | 160 | Insulation Grade | H |
| Minimum turning radius (mm) | 4000 | Total battery capacity | 60V 120Ah |
| Front wheel steering angle | 18.5° | Number of batteries | 5 |
| Whole vehicle curb weight (kg) | 720 | Tire specification | 135/70 R12 |
| Maximum load (kg) | 300 | Tyre pressure (KPA) | 250 |
| Maximum speed | 55km/h | Climbing capacity | ≥20% |
| Brake type | Front and rear disc brakes | Steering Control Type | Steering Wheel |
| Hub type | Aluminum alloy | Power consumption of 100 km | 8-10 |
| Door structure | 3 doors and 4 seats | Instrument display | Multimedia screen |
| Air conditioning | Three-level adjustable heating and cooling | Shift mode | Mechanical |
| Drive way | rear drive | Range (km) | 120 |
