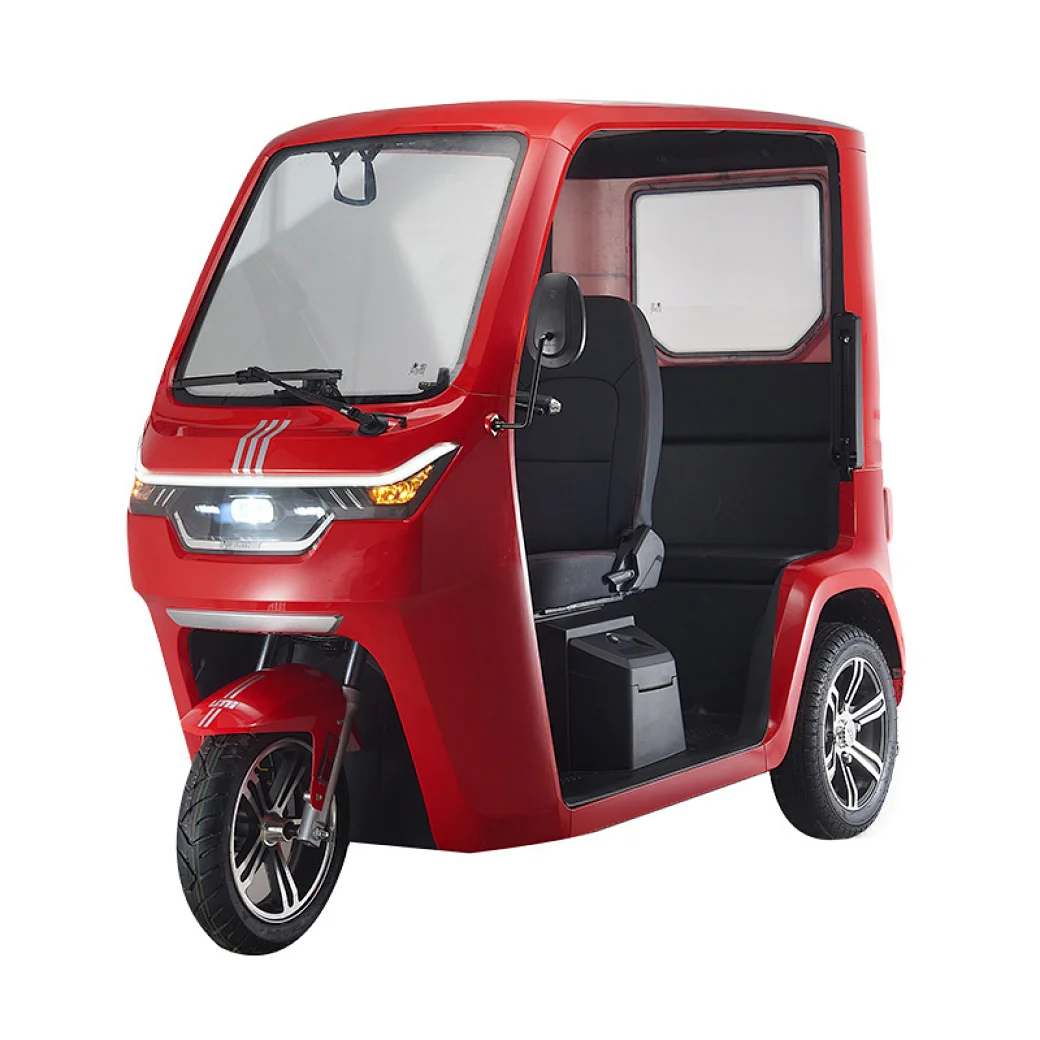

FST electric tricycle

• Min. Order:1
• Specification Description:YM-UM electric tricycle

Peoject	product Type	FSC-X8	FST-ZL	FST-UM
		2.0kw	1.5kw	2.0kw
Outline Dimensions	PICTURE
	Dimension(mm)	2400*1100*1660	2180*1150*1650	2320*1220*1500
	Wheelbase(mm)	1600	1645	1645
	Track	1000	1000	1000
	Min.ground	120	140	140
	Max.rated load	230	230	150
	Curb weight	250	220	253
	MaxSpeed	45	45	51
	Brake System	Hydraulic Disc Brake	Hydraulic Disc Brake	Hydraulic Disc Brake
	Brake mode	Foot Brake	Hand Brake	Hand Brake
	Front tyre size	125/65-R12	110/70-R12	130-60-R13
	Rear tyre size	125/65-R12	125/65-R12	135/70-R12
	Steering Type	Wheel	Manual	Manual
	Rated capacity	3 People(Including driver)	3 People(Including driver)	2 People(Including driver)
	Parking mode	Manual(Rear brake)	Manual(Rear brake)	Manual(Rear brake)
Dynamic Parameter	Max.Range per Charge	80km	80km	60km
	lead acid Battery	60V 58AH	60V 58AH	72V 45AH
	Charging time	8h	8h	8h
	Motor power	2.0kw	1.5kw	2.0kw
Optional Functions	Heater system	Yes	Yes	Yes
	MP3 radio	Yes	Yes	Yes
	Rear view camera	Yes	Yes	Yes
	Intelligent Remote	Yes	Yes	No
	Air Condition	can add	No	No
	Electric Window	Yes	Yes	Yes
EEC Certificate		yes	Yes	Yes
Extra Price of Optional Accessory		Tax	10%
		60V70AH LITHIUM BATTERY		72V 50AH LITHIUM BATTERY
		Air Condition (Only Available for FSC-X8)
QTY		10UNITS/40GP	10UNITS/40GP	17UNITS/40HQ

FAQ
Question 1: How to place an order?
A: The procedure is like this:
1). Contact customer service to determine the freight and product model, configuration, quantity and other detailed information (you can also arrange freight forwarding by yourself);
2). We provide you with a proforma invoice according to your final decision, which contains all product details;
3). You need to arrange 30% of the payment to our bank account, and then we will prepare the product to start production (the cycle is generally about 10 days, which can be shipped specifically for your order configuration quantity);
4). After the product is completed, the remaining payment is paid, and we arrange forwarder delivery (or we provide relevant information to arrange forwarder transportation by ourselves).
5). After completing this process, the customer service will track the product location and notify you when it is about to arrive and when it arrives, so that you can quickly prepare for customs clearance and other related issues.
6). After getting the items, there will be a dedicated after-sales team waiting for your follow-up feedback.

Q2. What does your FOB reference price include?
A: FOB price only includes cost. If you do not have your own freight forwarder, please provide us with a port near you
Countries/regions, we will quote CIF prices including shipping costs.
