electric tricycle van
electric tricycle van

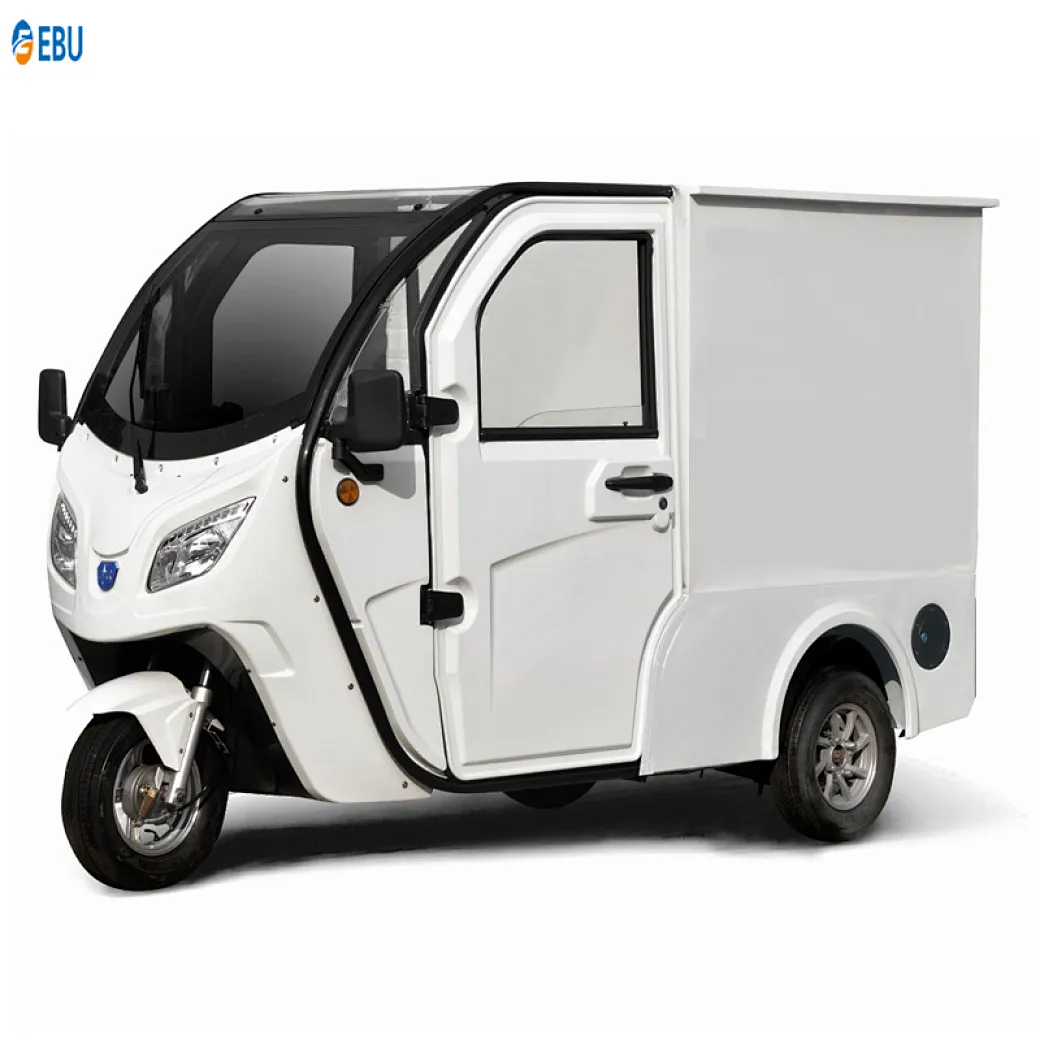

YY Electric tricycle VAN

Model NO.
YY-A4
Minimum order quantity:
1
Quantity:
  • Min. Order:1
  • Specification Code:Cargo Motorized Tricycles 3 Wheel VAN Electric Tricycle Adults
  • Specification Description:YY-A4
YY-A4
Size 2990x1090x1650mm
Motor Power 1500w
Battery specifications 60ah
speed 35/45km
recharge mileage 60km
Standard configuration information

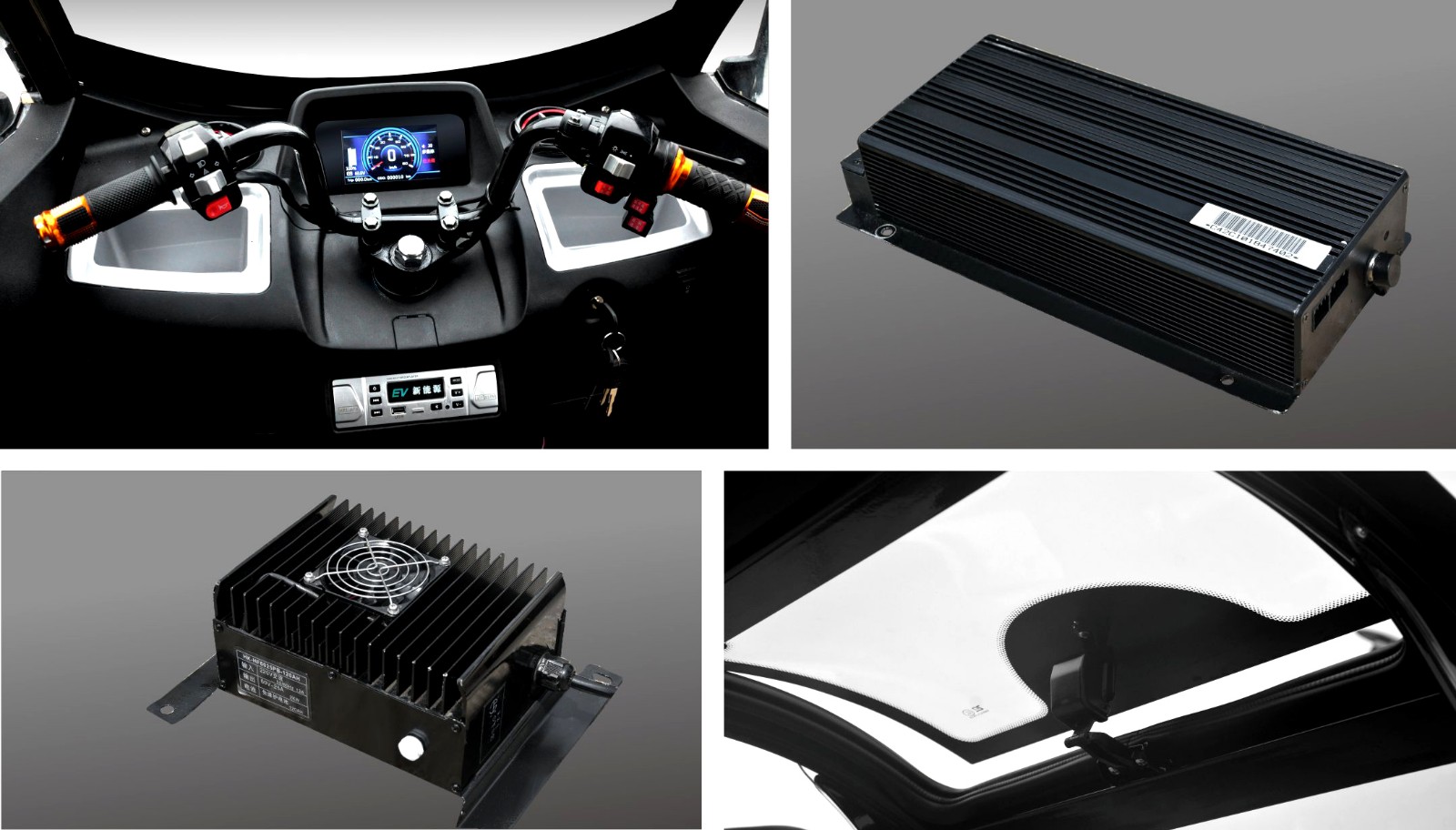

Fan / bumper /usb charger /mp4 /top back window /rear view camera /AC as options
L×W×H(㎜)2990x1090x1650
Wheel base(㎜)2100
WheeltrackFront wheel/rear wheel(㎜)1980
Ground Distance(㎜)110
Min Tunring Radius(mm)3000
Front Wheel Turning30°
Passenger(include Driver3
Mass Weight(kg)310kg
RMS(Kw/rpm)1500W
RV(V)60V/60AH
Motor TypePermanent magnet DC
Battery QTY5PCS
RPM4300r/min
Turning typeHandle bar
Brake Systermhydraulic Drum Brake
Tyre4.00-10
RimSteel rim
Max Loading260KG
Max Torque8Nm
Tyre Pressue2.3Kpa (Max)
Climbing Capacity10°
Max Range≥60km
Loading QTY8PCS/40HQ ,4PCS/20FT
